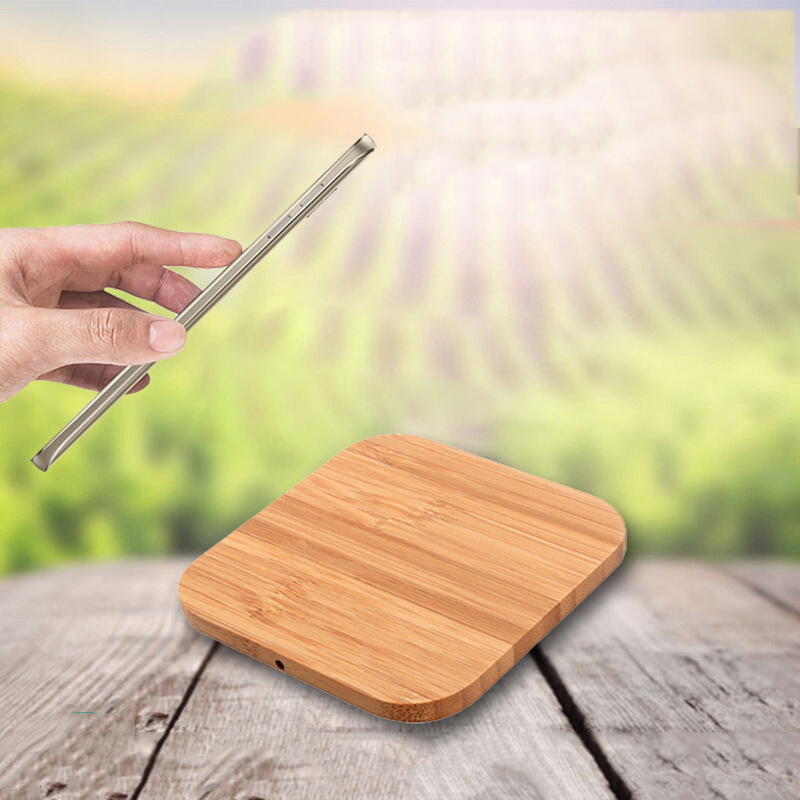

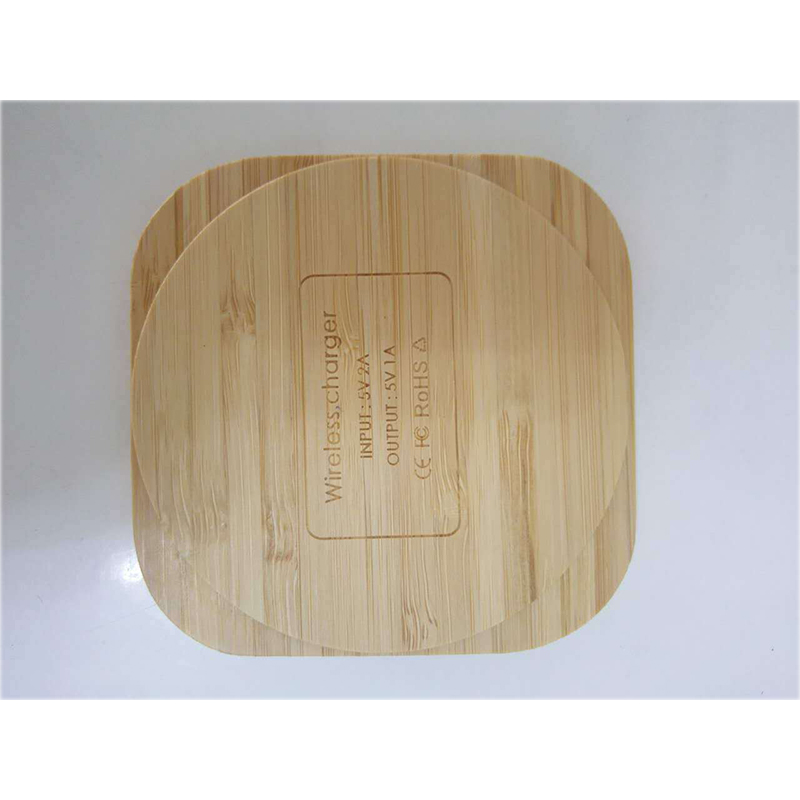

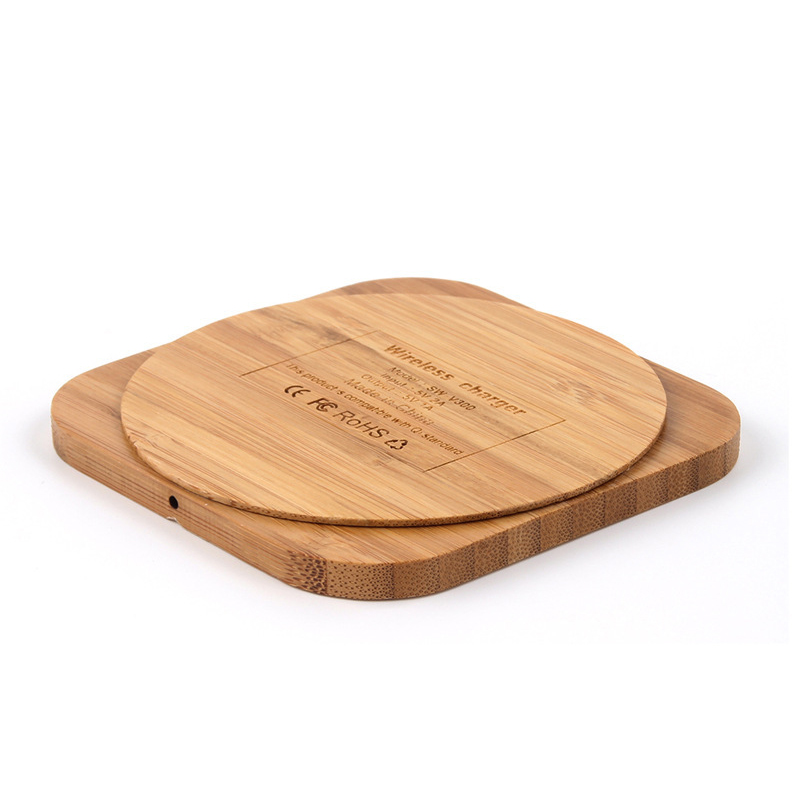

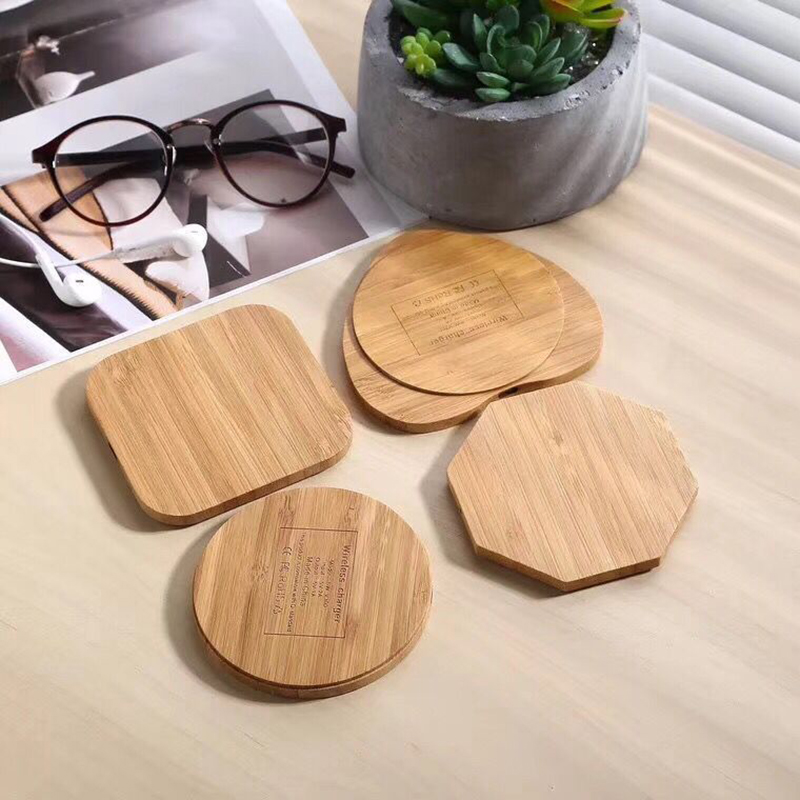

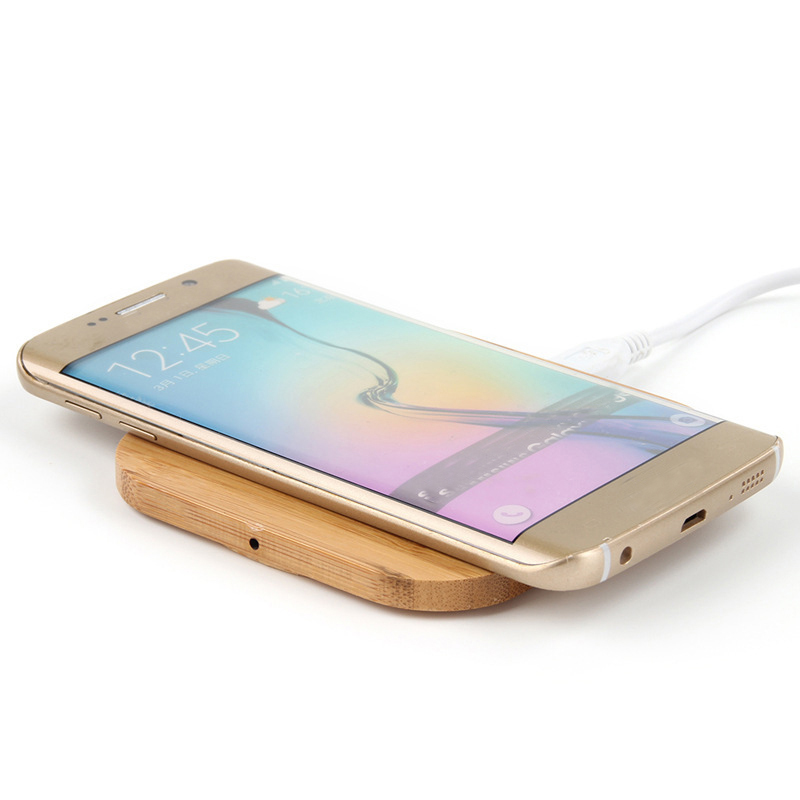

custom logo handmade heart shape 10W  5W  fast charger wood bamboo wireless charger for iphone

1. Input voltage: 5V 1.5-2A
2. Transmitting power: 5W -10W
3. Output current: 5V/1A
4. Transmission distance: 2-8mm
5. Product specifications: 92*92*8MM
6. Charging efficiency: 73%
7. Appearance: square
8. Scheme: independent research and development
9. Working frequency: 100-150KH

Function parameter description

Input voltage: DC4.3V~5.5V/1.5~2A, if the voltage exceeds this range, it will alarm and stop charging
Output voltage: 5V±0.1V,
Charging current: 1A
Charging power: up to 10W
Conversion efficiency: greater than 73%
Transmission distance: maximum 10mm, the recommended distance between sending and receiving is 2mm~4mm
Standby power consumption: average power consumption is less than 50mW
Over-temperature protection: when the temperature is higher than 60° during charging, the charging will stop automatically for 1 minute, and then recharge after the temperature drops.
Over-current protection: When the output current is greater than 1.5A during charging, the charging will be automatically stopped to prevent damage to the charger
Executive standard: Qi wireless charging standard
Product specifications: 92*92*8MM
Whether to support foreign body detection: support
Indicator function: green light on charging, red light on standby, double flashes for failure
